Description

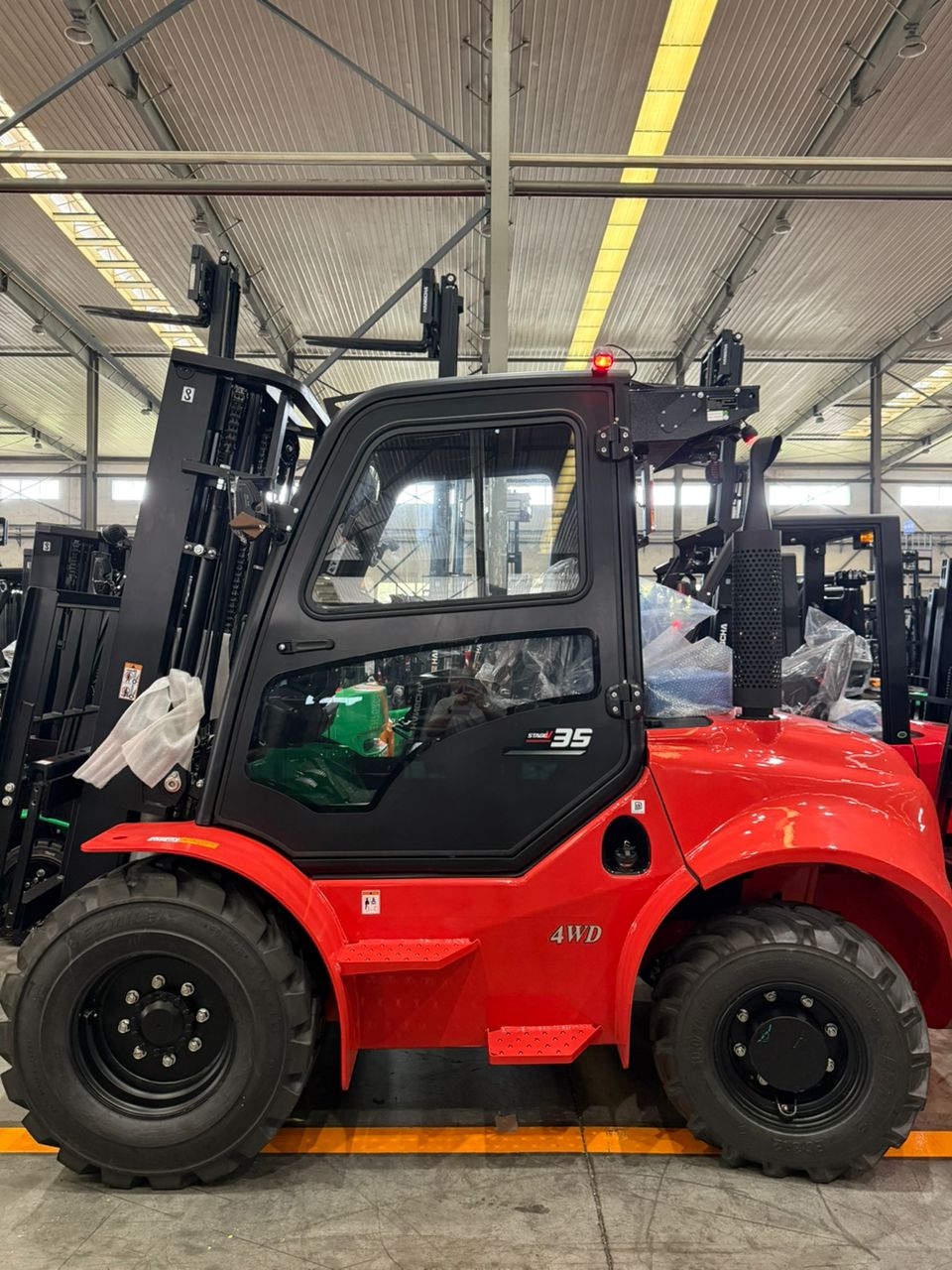

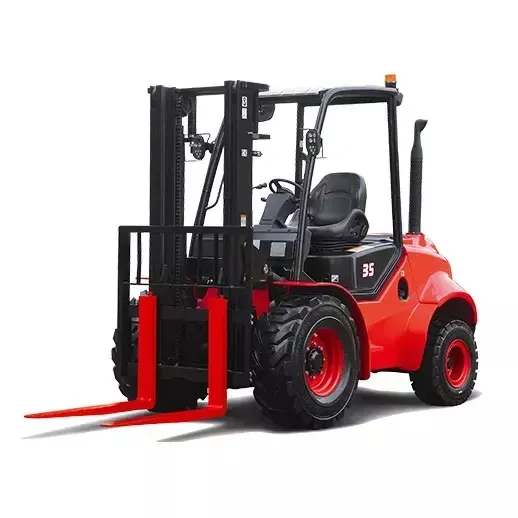

The CPCD35 Rough Terrain Forklift is a rugged, high‑performance diesel forklift designed specifically for outdoor applications on uneven, challenging ground. With a 3.5 tonne rated capacity and built for “off‑road” work, this machine is ideal for construction sites, agricultural yards, timber yards, and any environment where standard warehouse forklifts cannot cope.
Key Features & Benefits
Heavy‑duty performance
- Rated lifting capacity: 3,500 kg (with 500 mm load centre) for robust material handling.
- High‑grade diesel engine – KUBOTA V2607 stage V, delivering reliable power for demanding outdoor tasks.
- 2‑wheel drive (2WD) or 4‑wheel drive (4WD) versions available, to suit various terrain conditions.
- Excellent ground clearance (typically ~270 mm) and aggressive off‑road pneumatic tyres for traction and manoeuvrability on rough surfaces
Designed for rough terrain
- Mast tilt up to approximately 10° forward / 12° backward enhances stability and load control over uneven ground.
- Differential lock or limited-slip diff available (on certain models) to improve traction when load and terrain challenge the machine.
Operator comfort & safety

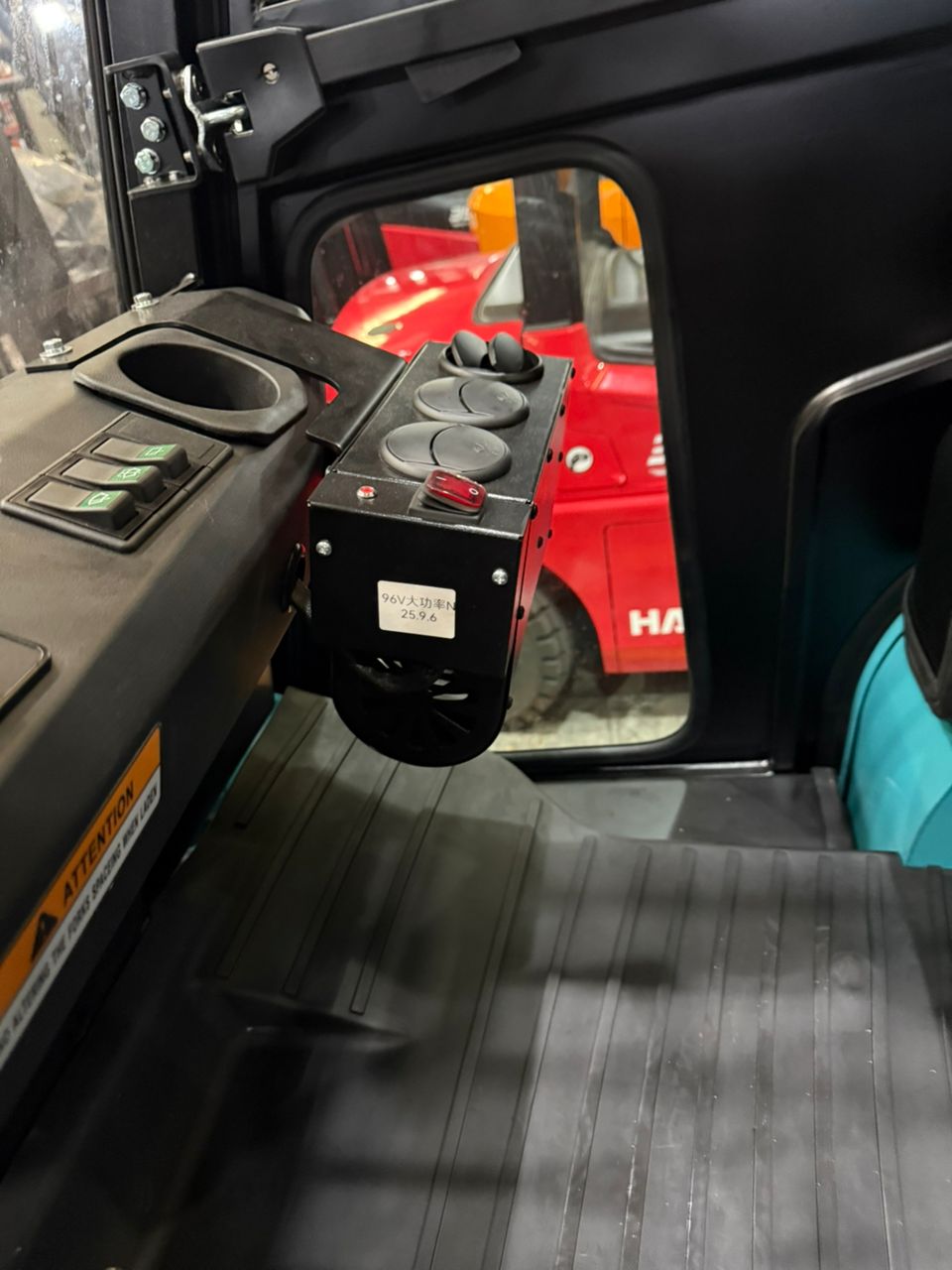

- Ergonomically designed operator station with good visibility, comfortable seat and full instrumentation.
- Full cab options (weather‑proof) available for all‑weather operation.
- Safety features include overhead guard, seat belt, reversing warning devices, lighting package, robust electrical and hydraulic systems.
Serviceability & reliability
- Modular electrical control box, quick‑access panels, robust hydraulic hoses and components for reduced downtime.
- Proven brand components (engines, transmissions) ensure long service life and easier global parts sourcing.
Technical Specification (Typical)
| Parameter | Value |
| Rated Capacity | 3,500 kg |
| Load Centre Distance | 500 mm |
| Ground Clearance (min) | 270 mm |
| Travel Speed (laden/unladen) | 19–20 km/h (varies by spec) |
| Mast Lifting Height | Various heights available from 2700mm – 6500mm |
| Fork dimensions (standard) | 1,220 mm length x 125 mm width x 50 mm thickness |
| Engine Type | KUBOTA Diesel Stage V |
Note: These figures are indicative. Please refer to the exact variant and serial number for precise specification.
Applications
Ideal for:
- Construction sites with unpaved or uneven ground
- Farms, orchards and agricultural yards
- Timber yards, landscaping, outdoor storage facilities
- Any outdoor loading/unloading activity where standard warehouse forklifts would struggle
Why Choose the CPCD35
- Combines strong lifting capacity with rough terrain capability — large tyres, high clearance, and optional drive choices.
- Operator‑friendly design ensures productivity and safety in challenging environments.
- Flexible configuration options including mast heights, cab types, attachments, and drive variants to match your specific site needs.
- Robust build supports continuous outdoor use, less sensitive to ground condition variation compared to indoor forklifts.
Options & Attachments
- Triplex or Duplex mast variants for varying lifting heights
- Side shift / fork positioner for enhanced load handling flexibility

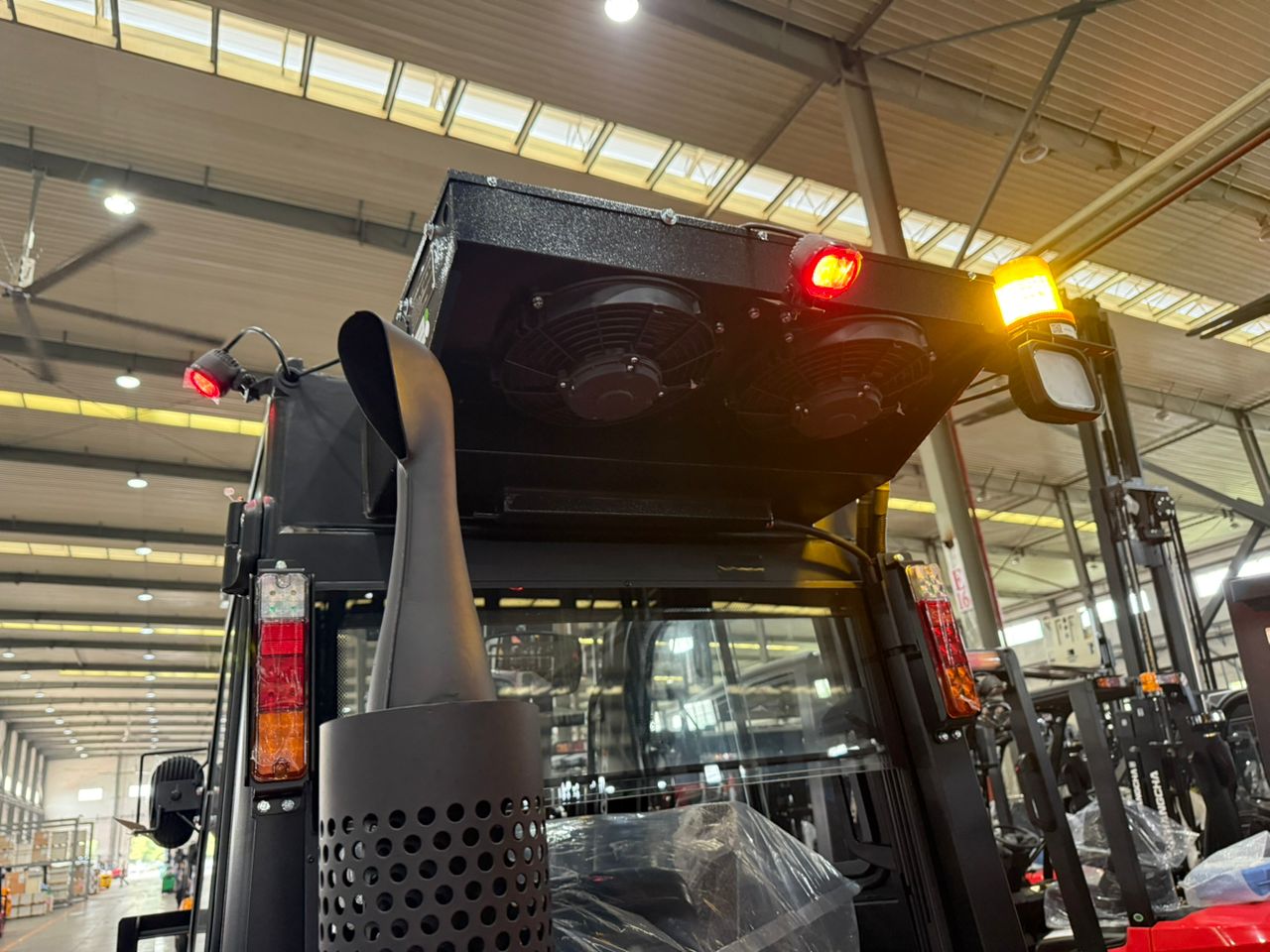

- Full enclosed cab with heating/AC for extreme weather environments
- Lighting packages (beacon, reverse light, container light) for low‑visibility operations
- 2WD vs 4WD selection depending on terrain and budget
Summary
The CPCD35 Rough Terrain Forklift offers a perfect blend of power, robustness, and versatility, tailored for outdoor and rough‑terrain applications. Whether your site involves mud, gravel, uneven ground or heavy load movement in non‐standard environments, this machine stands ready to deliver reliable performance and operator comfort.
